LCD Module Assembly Equipment 〔Taitec〕 | |||||||||||||

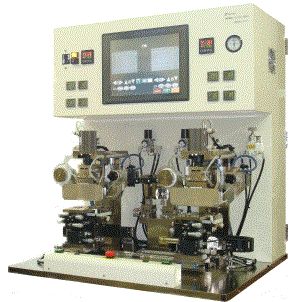

●FOB/FOG Fixing Machine ■After sprayed conductive paste by dispenser, thermo pressing and fixing by pressure head |

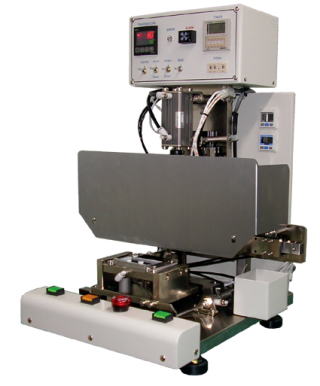

●FPC Alignment Machine ■After PCB and FPC alignment, thermo pressing and fixing by left/right pressure heads |

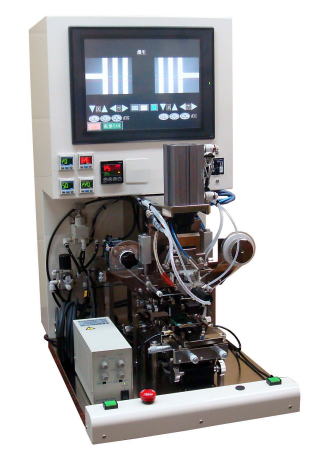

●LCD Connector Cleaning Machine ■Before ACF fixing, LCD panel terminal clears up by clearning liquid through dispensor |
|||||||||||

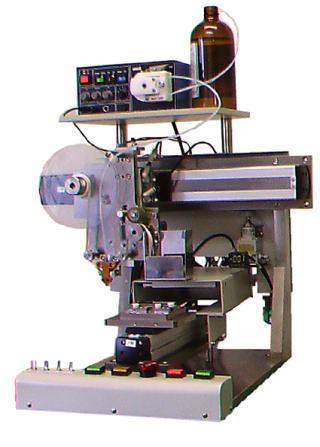

●ACF Fixing machine ■ACF fixing on LCD, FPC,PCB,COG by semi-automatic motion |

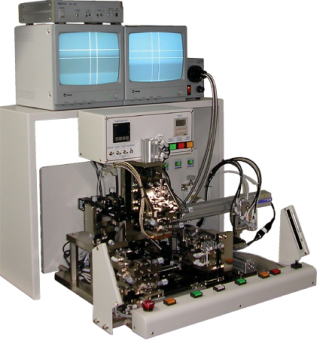

●Semi-auto IC Alignment/Fixing machine ■After fixed ACF on LCD panel, IC chip aligned on FPC board and pre-fixed |

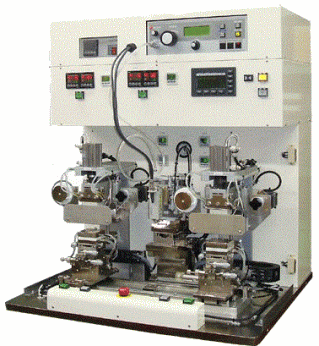

●UV Spraying & Curing Machine ■Spraying UV hardening material and then UV hardening |
|||||||||||

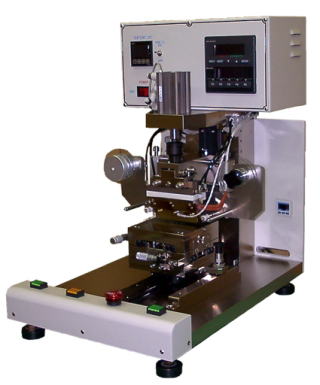

●FPC Alignment/Fixing Machine ■After LCD panel fixed with ACF, FPC board aligned and then fixed with LCD panel |

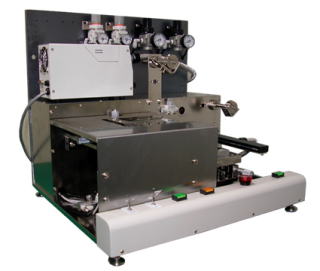

●LCD/FPC Fixing Machine ■LCD panel fixed with IC, LCF and FPC pressure-fixed |
●Deflection-Plate Fixing Machine ■In semi-auto, deflection plate fixed on LCD panel |
|||||||||||
■If your requirement not listed in the above, please contact us. To top | |||||||||||||
