| Measuring Microscope 〔Nikon・Olympus・Mitutoy・Union・Japan Technical・TESA〕 |
|
Measuring Microscope MM-400/MM-800 Series Nikon |
|
 |
■MM-800/LFA
■MM-400/LT
□Focus aid unit
□Fine/Course handle on L/R
□Z-axis Linear encorder built-in
□Trinocular viewing head
□High intensity LED illumination |
 |
■MM-400/T
□Fine/Course focus handle on L/R
□Trincular viewing head
□High intensity LED illumination
■MM-400/M
□Fine/Course focus handle on L/R
□Monocular viewing head
□High intensity LED illumination |
|
| Model |
MM-800/LFA |
MM-400/LT |
| Focus mechanism |
Manual（Both side with fine/coase handles） |
| Optical head |
Erect Image Trinocular, inclined 25° |
| Eyepieces |
CFWN10x（Field No. 20） |
| Objective |
Measuring microscope objectives: 1x（W.D; 79mm)・3x（W.D; 75mm）・5x（W.D; 64mm）・10x（W.D;
49mm）
20x（W.D; 20mm)・50x (W.D; 15mm)・100x（W.D; 4mm） |
| Stage |
MHS12x8・MHS10x6・MHS8x6・MHS4x4・O3L・MHS2x2 |
MHS6x4・MHS4x4・O3L・MHS2x2 |
| Light source |
Transimitted：White LED（Standard）12V50W Halogen Lamp(Option)； Reflected：LED |
Max. workpiece
height |
200mm |
150mm |
| Model |
MM-400/T |
MM-400/M |
| Focus mechanism |
Manual（Both side with fine/coase handles） |
| Optical head |
Erect Image Trinocular, inclined 25° |
| Eyepieces |
CFWN10x（Field No. 20） |
| Objective |
Measuring microscope objectives: 1x（W.D; 79mm)・3x（W.D; 75mm）・5x（W.D; 64mm）・10x（W.D;
49mm）
20x（W.D; 20mm)・50x (W.D; 15mm)・100x（W.D; 4mm） |
| Stage |
MHS6x4・MHS4x4・O3L・MHS2x2 |
| Light source |
Transimitted：White LED（Standard）12V50W Halogen Lamp(Option)； Reflected：LED |
Max. workpiece
height |
150mm |
|
|
Measuring Microscope STM6-LM/STM6 Olympus |
|
Model STM6-LM
Model STM6 |
Measuring Microscope STM6-LM
■Specification
□Observation: Brightfiled・Darkfiled・
interference・Polarizing
□Illumination: Incident・Transmitted
10W LED White(Incident)
10W LED Green(Transmitted)
□Focusing: Motorized・Manual
□Stroke: 205mm
□Max workpiece height: 150mm
□Viewing head: Elect image,
Monocular/Trinocular
□Stage: 250x150mm
□Measuring accuracy:
250mm：(3+5L/250)μm
150mm :（3+3L/150)μm
□Resolusion: 0.1/0.5μm(Selection)
□Data processor, Auto-focus (Option) |
Measuring Microscope STM6
■Specification
□Observation: Brightfiled・Darkfiled・ Interference・Polarizing
□ □Illumination: Incident・Transmitted
10W LED White(Incident)
10W LED Green(Transmitted)
□Focusing: Motorized・Manual
□Stroke;: 155mm
□Max workpiece height: 100mm
□Viewing head: Elect image,
Monocular/Trinocular
□Stage: 50x50, 100x50, 100x100,
150x100mm
□Measuring accuracy:
50mm(3+L/50)μm
100mm(3+2L/100)μm
150mtm(3+3L/150)μm
□Resolution: 0.1/0.5μm(Selection）
□Data processor, Auto-focus (Option) |
|
|
Measuring Microscope FM-U/MF Series Mitutoyo |
|
 |

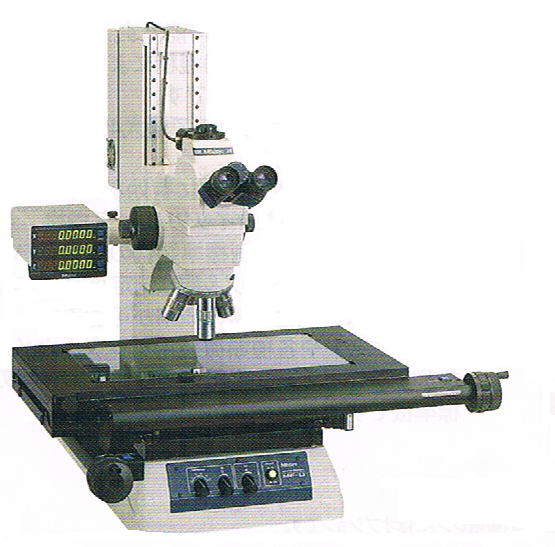

■MF-UB505C
□Measuring range:
50mm x 50mm
□Revolver、Objective,
Fiber illumination (Option) |
 |

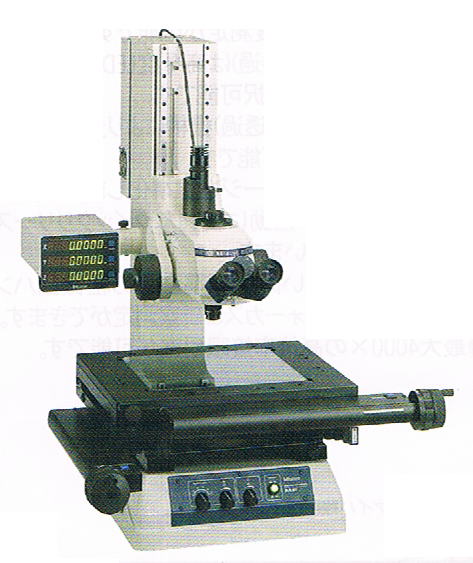

MF-B505C
□Measuring range:
50mm x 50mm
□Monocular・Binocular(Option) |
|
| Model |
MF-UB505C BF（Brightfield） |
MF-B505C （Brightfield） |
| Viewing head |
Erect image, trinocular head |
Erect image monocular/Binocular(Option)
・TV camera port（Standard） |
| Observation |
Brightfield BF（Darkfield BD） |
Brightfield |
| Eyepiece |
10X（Field No. 24）；15X,20X（Option） With revolver |
10X（Field No. 24)、15X, 20X(Option) |
| Objective |
M Plan Apo, M Plan Apo SL, G Plan Apo |
ML3X（標準）、1X,5X,10X,20X,50X,100X |
| Z-axis |
Max workpiece height 150mm |
Max workpiece height 150mm |
| Illumination |
Transmitted・Reflected： White LED |
Transmitted・Reflected：White LED |
| Stage |
Measruring range (mm) |
50x50 |
50x50 |
| Stage size(mm) |
280x280 |
280x280 |
| Glass size(mm) |
180x180 |
180x180 |
| Max workpiece weight |
10kg |
10kg |
| Scale |
Digital scale |
Digital scale |
| Accuracy |
(2.2+0.02L)μm L=Measuring length mm |
(2.2+0.02L)μm L=Measuring length mm |
| Digital counter |
Min. display： 1/0.5/0.1μm Changeable |
Min display： 1/0.5/0.1μm Changeable |
Measuring
range (mm) |
50x50, 100x100, 200x100, 200x170x, 300x170, 400x200 （Selection when ordering） |
|
|
Non-contact Depth Measuring Microscope HISOMET II Union Optical |
|
 |
Microscope body |
Binocular/Trinocular（C-mount)、Precise forcus unit |
| Eyepieces |
NWF10X、Field No.16 |
| Objectives |
PLM5X, PLM10X, PLLWM20X, PLLWDM40X, PLM100X (Selection) |
| Illumination |
Reflected(Halogenン50X),Transmitted(Halogen20W) |
| XY Stage |
50x50mm, 100x50mm, 100x100mm（Selection）Min reading 0.001mm |
| Z-axis indicator |
1μm indication、stroke 25mm |
| Option |
Z-axis 0.1μm mesuring unit、TV unit、Fiber illumination |
|
|
Measuring Microscope TM-500 Series Mitutoyo |
|
■TM-505R |
■TM-510R |
| Model |
TM-505R |
TM-510R |
| Viewing head |
Monocular (Erect image) |
| Measuring range |
50mm x 50mm |
100mm x 50mm |
| Angle scale |
Min graduation １°、Rotation 360°、Min Viener reading6’、Adjustable Zero position |
| Eyepiece |
15X（Standard）、10X, 20X |
| Objective |
2X（Standard）、5X, 10X |
| Focusing |
Max workpiece height 115mm |
Max workpiece height 107mm |
| Illumination |
Transmitted・Reflected： 24V2W Tungsten lamp |
| Measuring device |
Micrometer head minimuk reading 0.005mm （In case of MHD-50M; 0.001mm) |
| Micrometer travel length |
25mm （In case of MHD-50M; 50mm) |
|
|

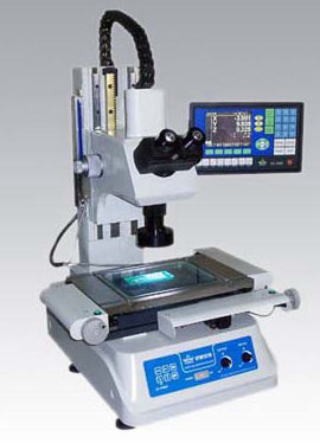

Measuring Microscope VTM Japan Technical |
 |
Model |
VTM-1510 |
VTM-2010 |
VTM-2515 |
VTM-3020 |
| VTM-1510G |
VTM-2010G |
VTM-2515G |
VTM-3020G |
| Table size |
354x228mm |
404x228mm |
450x280mm |
500x330mm |
| Glass size |
210x160mm |
260x160mm |
306x196mm |
350x250mm |
| Measuring range |
150x100mm |
200x100mm |
250x150mm |
300x200mm |
| Measuring accuracy |
Less than (3+L/75)μm (L=Measuring lenght mm) |
| Z measuring range |
150mm （In focusing） |
200mm （In focusing） |
| Resolusion |
0.0005mm |
| Weight |
100kg |
110kg |
135kg |
140kg |
|
| Image Measuring Microscope 〔Mitutoyo・Nikon・Chuo-Seiki・Japan Technical・TESA〕 |
|

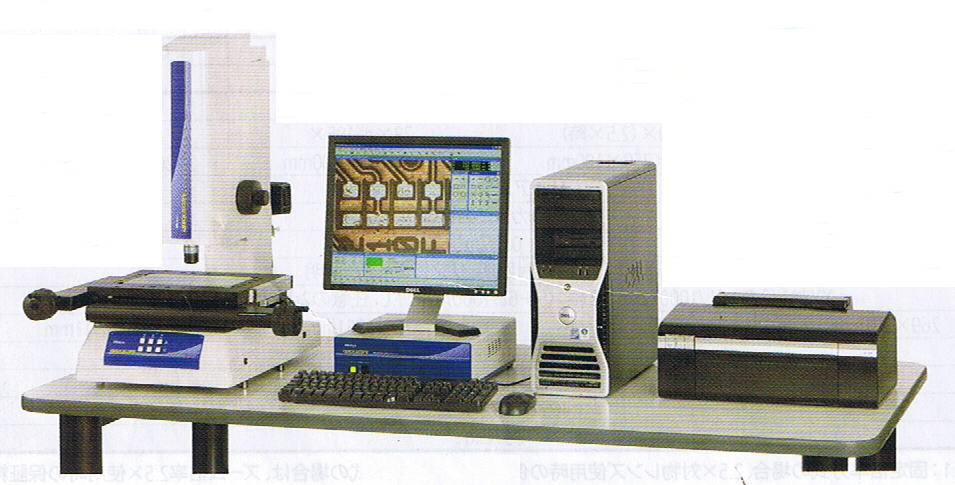

Quick Scope（Manual Image Measuring Microscope） QS-LZB・QS-EB Mitutoyo |
 |
Model |
QS-L2010ZB |
QS-L3017ZB |
QS-L4020ZB |
| QS-E2010B |
QS-E3017B |
QS-E4020B |
| Movement system |
Manual |
Measuring range
(X/Y/Z) |
200x100x150mm |
300x170x150mm |
400x200x150mm |
| Measuring unit |
Linear encoder |
| Image detect system |
CMOS Color camera |
| Minimum display |
0.1μm |
| Illumination |
Transmitted/Reflected、Ring light(Option for QS-E） |
| Accuracy |
X,Y axis |
QS-LZB (2.5+20L/1000)μm・QS-EB (3+20L/1000)μm |
| Z axis |
(5+40L/1000)μm |
| Max workpiece height |
150mm |
| Max workpiece weight |
10kg |
20kg |
15kg |
| Machine size |
624x769x722mm |
682x916x837mm |
757x930x837mm |
| Machine body weight |
72kg |
140kg |
146kg |
|
|
Quick Scope（CNC Image Measuring Microscope） QS・QS-L/AFB Mitutoyo |
|
Model QS |
Model QS-L/AFB |
|

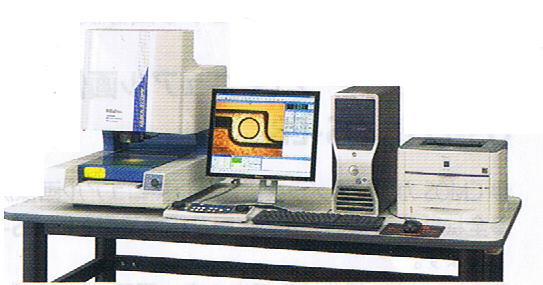

QS (CNC Image measuring microscope）
| Model |
QS200 |
QS250 |
QS200Z（Zoom type） |
QS250Z（Zoom type） |
| Observation |
Objective |
0.5x, 1x, 2.5x, 5x |
0.5x, 1x, 2.5x, 5x |
0.5～3.5x |
0.5～3.5x |
Magnification
on monitor |
140x（2.5x） |
140x（2.5x） |
28x～195x |
28x～195x |
| Measuring range(X・Y・Z) |
200x200x100mm |
200x250x100mm |
200x200x100mm |
200x250x100mm |
| Measuring unit |
Linear encoder |
| Image detect system |
CCD Color camera |
| Minimum reading |
0.5μm |
| Illumination |
Transmitted、Reflected illumination, Ring fiber right |
| Measuring accuracy(20℃） |
XY axis：(2.5+6L/1000)μm Z axis：(5+6L/1000)μm L= Measure length ｍｍ |
| Glass size |
269x261mm |
269x311mm |
269x261mm |
269x311mm |
| Max workpiece height |
110mm |
| Max workpiece weight |
10kg |
| Machine size(WxDxH) |
465x815x645mm |
| Machine body weight |
Approx. 76kg |

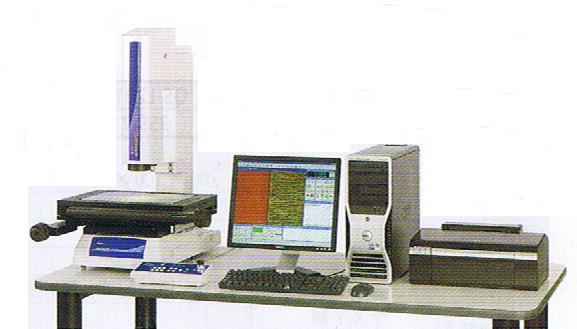

QS-L/AFB (Manual type Image measuring microscope）
| Fixed lens type |
QS-L2010/AFB |
QS-L3017/AFB |
QS-L4020/AFB |
| Zoom lens type |
QS-L2010Z/AFB |
QS-L3017Z/AFB |
QS-L4020Z/AFB |
| Movement system |
XY axis：Manual Z axis：Motorized、Auto-focusing |
| Measuring range(X・Y・Z) |
200x100x150mm |
300x170x150mm |
400x200x150mm |
| Measuring unit |
Linear encoder |
| Image detect system |
CCD Color camera |
| Minimum display |
0.1μm |
| Illumination |
Transimitted, Reflected illumination, Ring fiber light |
| Measuring accuracy(20℃） |
XY axis：(2.5+6L/1000)μm Z axis：(5+6L/1000)μm L= Measured length ｍｍ |
| Max workpiece height |
150mm |
| Max workpiece weight |
10kg |
20kg |
15kg |
| Machine size(WxDxH) |
624x705x722mm |
682x852x837mm |
757x867x837mm |
| Machine weight |
Approx ６６kg |
Approx. 134kg |
Approx. 140kg |
|
|

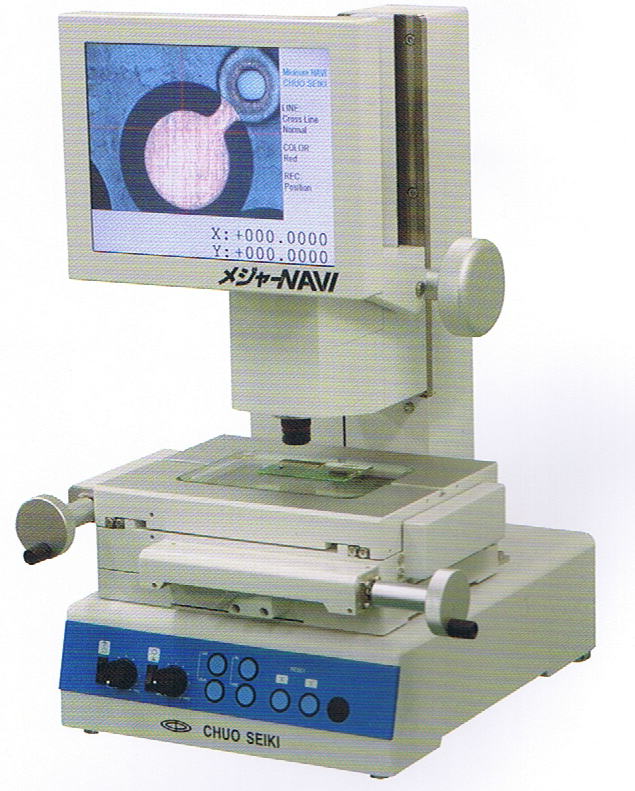

Image measuring microscope Chuo-Seiki |
|
 |
□Objective ： 10X（Standard）
□Light source ： 12V50W Fiber light guide illumination
□Focusing : Auto-focusing
□Observation ： 10.4 inches TFT color LCD（800x600 pixel）
□Objective ： 10X （Approx 80x on screen）
□Measuring range ： 100mm x 50mm, 0.001mm
□Z axis ： 10mm, 0.001mm
□Control ： PC control, Image mesuring software |
|
|
Image measuring microscope VMS Japan Technical |
|
 |
Model |
VMS-2010F |
VMS2515F |
VMS-3010F |
VMS-4030F |
| Table size |
404x228mm |
450x280mm |
500x330mm |
606x466mm |
| Glass size |
260x160mm |
306x196mm |
350x250mm |
450x350mm |
XY Measuring
range |
200x100mm |
250x150mm |
300x200mm |
400x300mm |
| Accuracy |
(3+L/75)μm以下 (L=Measured length mm) |
Z measuring
range |
92mm (Working distance 150mm) |
| Resolution |
0.0005mm |
| Machine weight |
110kg |
135kg |
140kg |
240kg |
| Objective |
Zoom lens 0.7～4.5X |
| Field size |
11.1～1.7mm |
| Magnification |
23.5 ～ 148X （ On １７”monitor） |
| Illumination |
Reflected： 12V LED Ring lamp illumination
Transmitted： 24V/20W Halogen illumination |
| Video system |
Consisted： CCD camea； CPU P4 1.7G 128M ； OS Windows XP11；
17 inches LCD monitor , Software； M2D-AT |
|
|

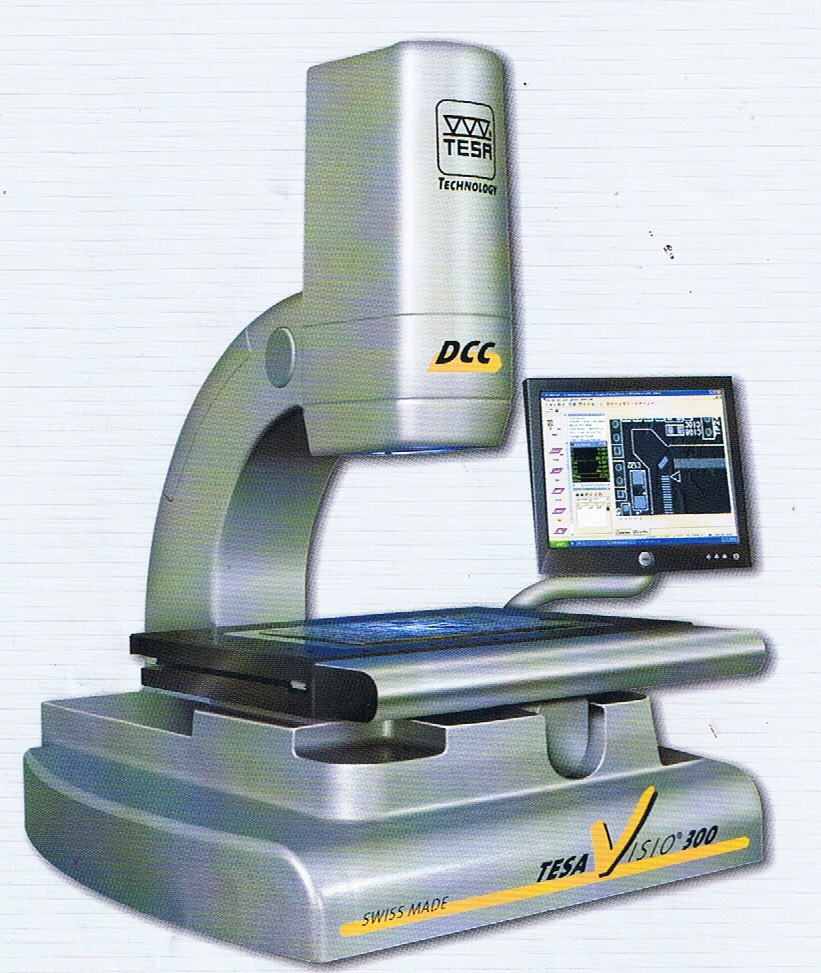

Image measuring microscope TESA VISIO TESA |
|
 |
Model |
TESA-VISIO 300 |
TESA-VISIO 300 |
TESA-VISIO 300DCC |
| Software |
TESA-VISTA |
PCDmis |
PCDmis |
| Operation |
Manual |
Manual |
Auto |
| Measuring range X/Y/Z (mm) |
300x200x150 |
300x200x150 |
300x200x150 |
| Accuracy X/Y(E2) |
3+10L/1000 |
2.4+4L/1000 |
| Accuracy Z(E2) |
3+2L/1000 |
3+1L/1000 |
| Resolution (X/Y/Z) |
0.05μm |
| Machine size・weight |
680x990x800mm/70kg |
| Power source |
100～220V, 50/60Hz |
|
■For other manufacturers, model, details specification, please contact
us.   To top |
