| 2 Coordinate Measuring Machine・Micro Protter・Digi-grammer 〔Japan Technical〕 |
 |

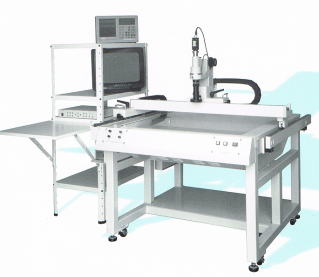

Model |
DSM-700N/ DSM-1000N |
| Measuring range |
700x700m/ 1000x1000mm |
| Minimum reading |
0.001mm |
| Measuring accuracy |
U1=±0.01mm |
| Microscope |
Zoom microscope (Magnification 16～100X on 15inches monitor) |
| Image display |
LCD monitor 15 inches |
| Measuring unit |
Hydenhain Linear scale |
| Illumination |
Reflected ・Transmitted illumination |
| Line generator |
Circle line ・Closs-line, digital line generator |
| Option |
Data processor, High maginied microscope, Printer |
|
 |

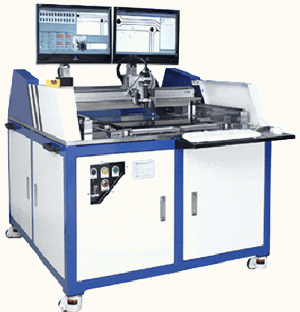

Model |
TSL-FTV-DX3.5/TSL-FVT-SuperPlus |
| Measuring range |
710x580mm/710x550mm |
| Minimum reading |
15μm/10μm |
| Resolution |
1.5～9μm/1μm （On display unit） |
| Microscope |
Zoom microscope （30～200X on monitor） |
| Image display |
LCD monitor 17inches （2 units） |
| Measuring unit |
High precision linear scale |
| Illumination |
Reflected ・Transmitted illumination |
| Drive system |
AC Servo motor, Precision ball screw |
| Data processer |
Exclusive PC ・Software |
| Measuring mode |
Coordination・Distance・Pitch・Circle・Angle・Area |
| Option |
Printer |
|
■If not listed in the above, please contact us.   To top |
